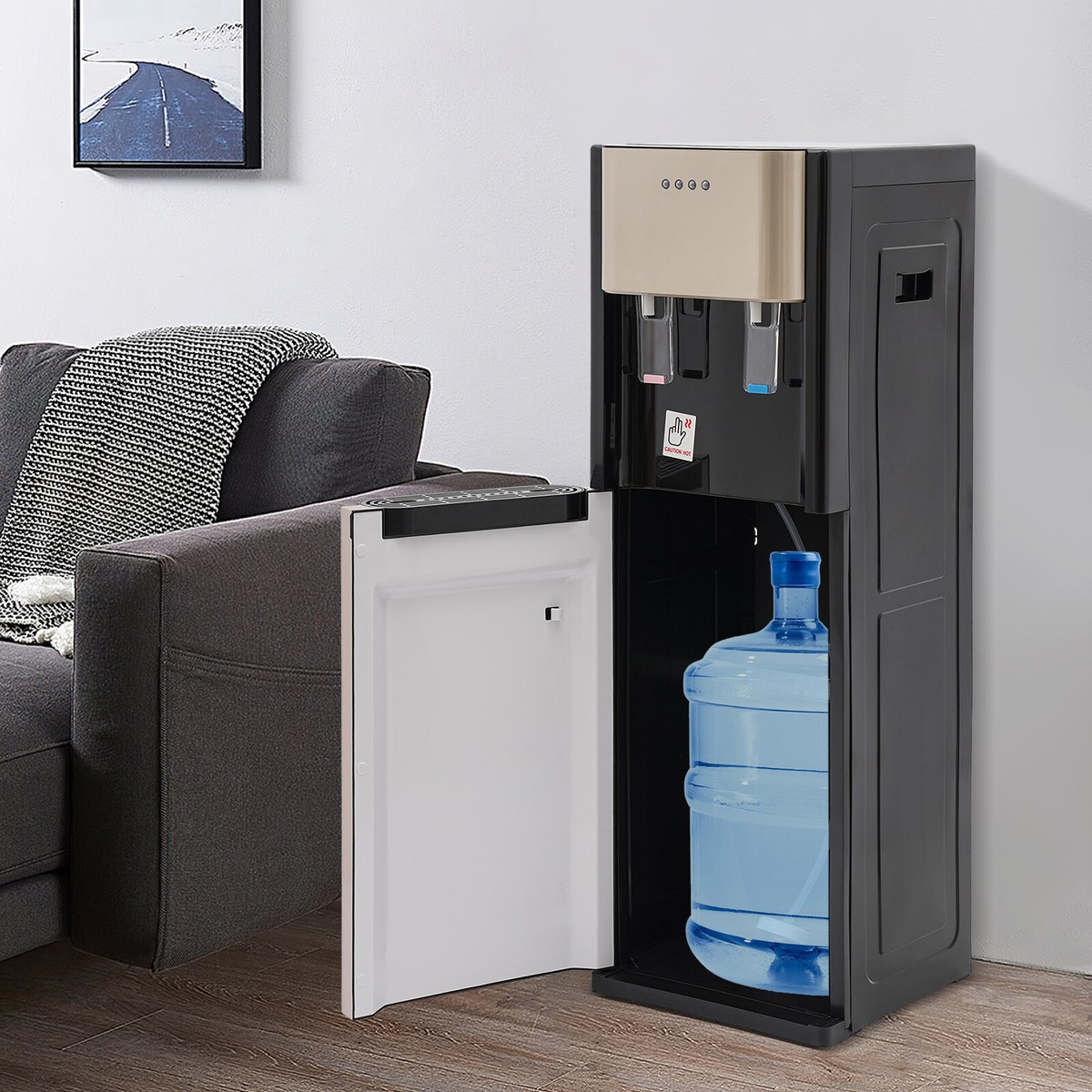

Ever marveled at the magic of a bottom-loading water dispenser? You slide a heavy 5-gallon jug into the base, close the door, and moments later, you have crisp, cold water at the press of a button. There’s no awkward lifting, no precarious flipping, and best of all, no spills. But what’s the secret behind this modern convenience? The answer lies in a clever little device, and if you’re asking What Is A Bottle Probe Or Collar, you’re about to uncover the heart of the system. Let’s pull back the curtain on this piece of engineering that has made our lives so much easier.
As the Senior Consultant for Water Dispenser Pro, I’ve seen countless innovations, but the bottle probe truly revolutionized how we access fresh water at home and in the office. It’s more than just a tube; it’s the bridge between the water source and your glass.
So, What Exactly is a Bottle Probe or Collar?
In the simplest terms, the bottle probe or collar is the assembly that goes into the water jug on a bottom-loading water dispenser. It’s essentially a long, rigid tube (the probe) connected to a cap-like device (the collar) that creates a seal over the bottle’s opening.
Think of it as a high-tech, self-sealing straw for your water cooler.
- The Probe: This is the long, slender wand that extends down into the water bottle. Its job is to draw water from the very bottom of the jug, ensuring you get to use almost every last drop.
- The Collar: This is the cap that the probe is attached to. It’s designed to fit snugly onto the neck of a standard 3 or 5-gallon water jug. The collar often has a handle for easy insertion and removal and, crucially, contains the sealing mechanism and the connection point for the dispenser’s pump tubing.
Together, this assembly allows the dispenser’s internal pump to suck water up from the concealed jug and send it to the hot and cold water reservoirs at the top of the unit. It’s the ingenious component that makes the “bottom-loading” feature possible.
How Does This Little Gadget Actually Work?
The process is a fantastic example of simple physics and clever design. When you place the bottle probe or collar onto a new water jug and slide it into the dispenser, you’re setting a chain of events in motion.
- Creating the Seal: The collar locks onto the neck of the water bottle, creating an airtight or near-airtight seal. This is vital for the pump to work efficiently.
- Activating the Pump: Once the cabinet door is closed, a sensor usually tells the dispenser that a bottle is in place. The internal electric pump, a quiet but powerful workhorse, kicks into action.
- The Power of Suction: The pump creates a vacuum, pulling air out of the tube connected to the probe. This suction draws water up from the bottom of the jug, through the probe, and into the dispenser’s plumbing.
- Filling the Tanks: The water travels up to fill the internal reservoirs—one for cold water and one for hot water.
- Smart Sensors: Most modern dispensers have sensors inside the reservoirs. When the water level drops as you dispense it, the sensors signal the pump to turn on again and refill the tank. This ensures you always have hot and cold water ready to go.
It’s a seamless, automated process that all starts with that humble probe sitting inside the jug.
Bảng trống.Why the Bottle Probe is a Game-Changer: The Rise of Bottom-Loaders
To truly appreciate the bottle probe or collar, we need to remember what came before it: the top-loading water cooler. For decades, this was the standard. And let’s be honest, it came with its own set of challenges.
The End of the “Lift and Flip”
I remember when my office first got a water cooler. The dreaded task of changing the bottle fell to whoever was unlucky enough to take the last glass. It involved lifting a 40-pound (about 18kg) jug, hoisting it shoulder-high, and quickly flipping it onto the dispenser, all while trying not to spill gallons of water on the floor or strain your back. The bottom-loader, thanks to its probe system, eliminated this problem entirely. It’s a huge win for workplace safety and home convenience, making it accessible for everyone, regardless of their strength.
A Sleeker, Cleaner Look
Top-loading dispensers have a bulky, top-heavy appearance with the water bottle on full display. Bottom-loading models conceal the jug inside a sleek cabinet, resulting in a much more modern and aesthetically pleasing appliance that blends seamlessly into any kitchen or office decor.
Better Hygiene
With a top-loading model, the bottle’s opening is exposed to the air as you flip it. The bottle probe system is far more hygienic. The collar creates a tight seal, minimizing the water’s exposure to airborne dust, germs, and other contaminants. For more tips on keeping your dispenser in top shape, check out our guide on [how to properly sanitize your water cooler].
As Maria Jenkins, a hydration technology specialist with over a decade in the home appliance industry, often states: “The development of the bottle probe system wasn’t just about convenience; it was a significant leap forward in user safety and water hygiene. It transformed the water dispenser from a purely functional item into a sophisticated and safe home appliance.”
Is a Dispenser with a Bottle Probe Right for You?
Choosing a water dispenser is a personal decision, but understanding the technology helps you make an informed choice. Here’s a quick comparison to help you decide.
| Feature | Bottom-Loading (with Probe) | Top-Loading | Point-of-Use (POU) |
|---|---|---|---|
| Ergonomics | Excellent. No heavy lifting. | Poor. Requires lifting 40+ lbs. | Excellent. No bottles to change. |
| Aesthetics | Excellent. Bottle is hidden. | Fair. Bottle is visible. | Excellent. Sleek, bottle-less design. |
| Hygiene | Very Good. Sealed system. | Good. Bottle opening is exposed. | Excellent. Directly filtered water. |
| Initial Cost | Moderate to High | Low to Moderate | High (plus installation) |
| Flexibility | High. Can be placed anywhere. | High. Can be placed anywhere. | Low. Must be connected to a water line. |
A bottom-loading dispenser featuring a bottle probe or collar is the perfect middle ground for most users. It offers premium convenience and aesthetics without the high cost and installation requirements of a point-of-use system.
Common Issues and Easy Fixes for Your Bottle Probe
Even the best technology can have hiccups. If your bottom-loading dispenser isn’t working, the probe is often the first place to check.
- Problem: The dispenser is not pumping water.
- Fix: Ensure the probe is pushed all the way to the bottom of the jug. Check that the collar is sealed tightly on the bottle. Sometimes, an air bubble can get trapped; try removing and reinserting the probe to “burp” the system.
- Problem: The pump is running constantly or is very loud.
- Fix: This usually indicates an air leak. The collar’s seal might be compromised, or the bottle itself might have a small crack. Inspect the O-rings and seals on the collar for damage and try a new water jug.
- Problem: The water tastes funny.
- Fix: The probe and its tubing need regular cleaning, just like the rest of the dispenser. Mineral deposits or biofilm can build up over time.
How to Clean Your Water Dispenser’s Bottle Probe
Cleaning the probe is a critical part of your dispenser’s maintenance routine. We recommend doing this every 3-6 months, or whenever you change the bottle and notice any residue.
- Prepare a Cleaning Solution: Mix one part white vinegar with three parts warm water. Alternatively, you can use a specially formulated, food-safe dispenser cleaning solution.
- Unplug the Dispenser: Safety first! Always disconnect the appliance from the power source before cleaning.
- Remove and Disassemble: Carefully remove the bottle probe or collar from the water jug. If possible, detach the probe from the collar and any flexible tubing.
- Soak and Scrub: Submerge all parts in your cleaning solution for 5-10 minutes. Use a long, flexible brush (like a bottle brush) to gently scrub the inside of the probe and any attached tubing.
- Rinse Thoroughly: Rinse all components with clean, fresh water until you can no longer smell the vinegar. This step is crucial to avoid a vinegary taste in your water.
- Reassemble and Reinstall: Once everything is dry, reassemble the probe and collar and place it back in your new water jug. Run a few glasses of water through the system to flush out any remaining cleaning solution.
Frequently Asked Questions (FAQ)
Q1: Can I use any brand of water bottle with my dispenser’s probe?
Most 3 and 5-gallon water jugs use a standardized neck size, so the bottle probe or collar should fit universally. However, some proprietary bottles from specific water delivery services may have unique caps. It’s always best to use standard, returnable jugs.
Q2: My dispenser is making a gurgling noise from the probe area. Is this normal?
Yes, some gurgling is perfectly normal. It’s the sound of air replacing the water being pumped out of the jug. However, if the sound becomes excessively loud or the pump seems to be struggling, it could indicate an air leak in the seal.
Q3: How often should I clean the bottle probe or collar?
For optimal hygiene and performance, we recommend cleaning the probe and the entire water path every 3-6 months. If your water has a high mineral content or the dispenser is in a high-traffic area, you may want to clean it more frequently.
Q4: What happens if the bottle probe seal is broken or lost?
A broken seal will prevent the pump from creating the necessary vacuum to draw water. The pump will likely run continuously without dispensing any water. You can usually order a replacement seal or a new collar assembly from the manufacturer.
Q5: Is the plastic used in the bottle probe safe?
Absolutely. All reputable water dispenser manufacturers use food-grade, BPA-free plastic for any component that comes into contact with the drinking water, including the probe, collar, and tubing, to ensure your water is safe and pure.
The Final Word
The next time you effortlessly dispense a glass of water from a sleek, bottom-loading cooler, give a little nod to the unsung hero hidden inside: the bottle probe or collar. This simple yet brilliant device is what makes the magic happen, saving our backs, cleaning up our kitchens, and delivering pure hydration with ease. Understanding how this component works is the first step toward choosing the right dispenser and keeping it in perfect working order for years to come. Now, go enjoy that perfectly chilled glass of water—you’ve earned it.
